Sprue picker

Name: Sprue picker
Brand: igus®
SKU: RBTX-PL-0035
Price: 5,443.41 GBP
Availability: InStock

igus®

Complete solutions

‌

Part No.: RBTX-PL-0035

Variants: Cabinet version

Variants

Part No.: RBTX-PL-0035

The IAP1 was developed for engagement in stripper and ejector moulds. Lubricant-free igus plain bearing materials are used for the movement by means of a link guide, as well as spindle and drive technology. A dynamic 1-axis picker with electric drive. The picker is particularly suitable for the automation and retrofitting of small injection moulding machines and allows the removal and separation of sprues in a very confined space. The system can be fully integrated into the injection moulding machine, with fast r, moval within the standard protective housing. Total mould open to close cycle in 1.25 seconds. The picker has a modular design. For example, the base can be individually adapted for different machine types. The solution is a stand-alone device including motor control with simple programming. No additional software is required.

Usual delivery time: 3 weeks

‌

Highlights

Scope of delivery

IAP1 sprue picker pre-programmed for Arburg 270s
Control cabinet with Siemens PLC, igus D1 motor control, Euromap interface
Gripper
Cables

Note: If the existing programming of the Euromap interface does not match the factory-fitted machine, the adaptation must be carried out by the customer.

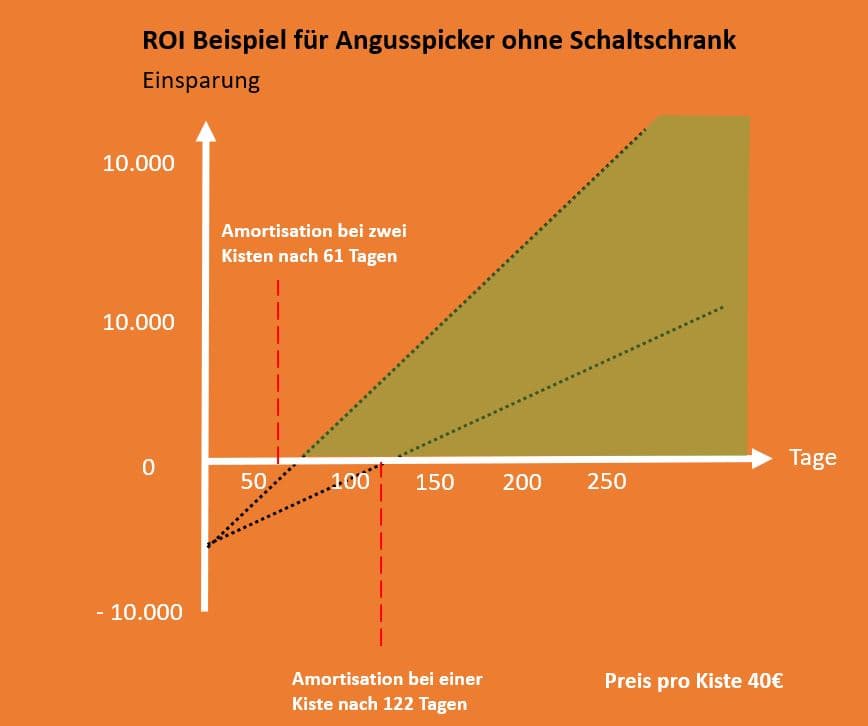

ROI in a few months

Depending on the production volume and variant, the payback period for the investment is about 2-6 months.

Fast Facts

For engagement in stripper and ejector moulds.
The sprue is ejected laterally
1-axis
Electric drive
Wear parts easily replaceable
Total cycle time (opening to closing) of only 1.25 s
100% lubricant free
24/7 in operation

https://a.storyblok.com/f/298593/4c6a69fb76/grafik.svg

Economic use in igus® production

We also use our compact sprue picker ourselves in our own production - and already in more than 330 machines. In this way, we achieve automated separation of sprue and components in just 1.25 seconds.
